Description

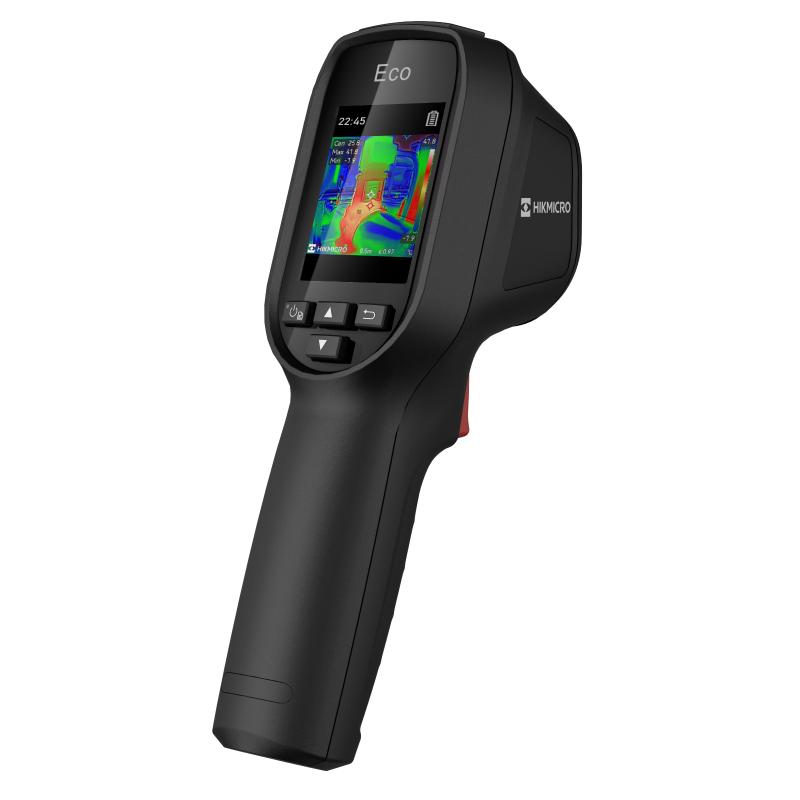

Eco Handheld Thermal Camera
Key Feature
- Thermal resolution: 96 × 96 (9,216 pixels)
- 112:1 Distance to spot ratio (D:S)
- SuperIR: 240 × 240 (57,600 pixels)
- NETD: < 50 mK (@ 25°C, F# = 1.0)
- Measurement presets: center spot, hot spot, cold spot, off
- 25 Hz image frequency
- Laser pointer
- Built-in 4 GB flash memory: 30,000 pictures
Up to 8 hours continuous running
SpecificationInfrared Image |
|
| IR Resolution | 96 × 96 (9,216 pixels) |
| SuperIR | 240 × 240 (57,600 pixels) |
| Distance to Spot Ratio (D:S) | 112:01:00 |
| NETD | < 50 mK (@ 25°C, F# = 1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 1.35 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 50° |
| Spatial Resolution (IFOV) | 8.89 mrad |
| Min. Focus Distance | 0.1 m (0.33 ft) |
| Focus Mode | Focus Free |
Image Display |
|
| Display | 240 × 320 Resolution, 2.4”LCD Screen |
| Image Modes | Thermal |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
| Color Alarm | Above alarm |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max. (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature |
| above 0°C (32°F) | |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto/Manual |
Data Storage and Communication |
|
| Storage Media | Built-in 4 GB flash memory |
| Image Storage Capacity | Approx. 30,000 Images |
General |
|
| USB Interface | USB Type-C |
| Laser | Yes, Class II |
| Battery Type | Rechargeable Li-ion battery |
| Battery Charging Time | Approx. 3 hours fully charged (Adapter Output: 5 V 2 A) |
| Battery Operating Time | Approx. 8 hours |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 290 g (0.64 lb) |
| Dimension | 196 × 117 × 59 mm (7.7” × 4.6” × 2.3”) |
| Tripod Mounting | UNC ¼”-20 |
Dimension
Informasi Penjualan Produk HIKMicro Eco Handheld Thermal Camera
Temukan informasi penjualan produk HIKMicro Eco Handheld Thermal Camera dengan mengubungi contact person kami atau dengan mengirimkan quotation barang tersebut. Untuk permintaan presentasi dan penjelasan lebih lanjut mengenai produk tersebut, hubungi kontak Sarana lab distributor HIKMicro di Indonesia.
