Description

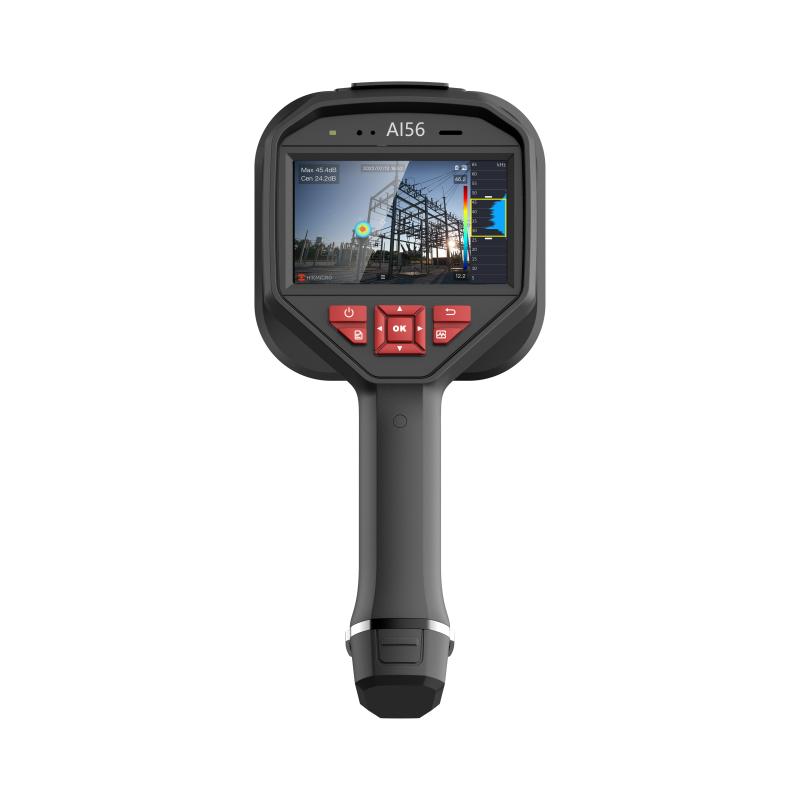

AI56 Acoustic Imaging Camera
Key Feature
- 64 Low-noise MEMS Microphones, real-time sound source localization
- Real-time estimated leak rate, leak cost, and leak level for gas leak detection
- Partial discharge detection can identify corona, floating, surface, and particle discharges
- Analyzer acoustic software for analyzing images and export
- 800 × 480 Resolution, 3’LCD Touch Screen
- Supports 8 acoustic palettes
Specification
| Acoustic | |
| Number of Microphones | 64 |
| Acoustic Image Resolution | 800 × 480 |
| Bandwidth | 2kHz~65kHz |
| Distance | 0.3m~100m |
| Acoustic Image Palette | 8: White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red |
| Camera FOV | 50.2°× 35.4° |
| Sound Intensity Display | Peak Point |
| Acoustic Image Frame Rate | 25 fps |
| Dynamic Range | Low Limit: <-15dB
High Limit: >120dB |
| Leak Rate | >0.008 l/min @ 6 bar from 0.5 m (1.64 ft)
>0.013 l/min @ 5 bar from 1 m (3.28 ft) |
| Discharge Detection | Automatic detection 50 / 60 Hz |
| Discharge Type | Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge |
|
Image Display |
|
| Display | 800 × 480 Resolution, 4.3’LCD Touch Screen |
| Screen Brightness | Manual/Auto |
| Digital Zoom | 1.0x to 8.0x continuous |
|
Data Storage and Communication |
|
| Storage Media | Removable 64 GB SD Card |
| Image Storage Capacity | 20,000 images |
| Annotations | Voice note: max. 60 seconds;
Text note: max. 200 characters |
| Video Storage Capacity | 60 hours |
| Video File Format | MP4 |
|
General |
|
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz), Hot Spot only |
| Bluetooth | Bluetooth 4.1 |
| USB Interface | USB Type-C |
| HDMI Interface | HDMI-D |
| Battery Operating Time | Approx. 3.5 hours |
| Battery Type | Dismountable and Rechargeable Li-ion Battery |
| Battery Charging Time | 5 hours to full charge |
| Protection level | IP40 |
| Power Supply | 5V DC/2A (Charging via USB) |
| Drop Test Height | 1.2 m (3.94 ft) |
| Safety | IEC 61010-1 |
| EMC | EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3 |
| Working Temperature Range | -20 °C to 50 °C (-4 °F to 122 °F) |
| Storage Temperature Range | -20 °C to 60 °C (-4 °F to 140 °F) |
| Relative Humidity | ＜95 % non-condensing |
| Weight | Approx. 940 g (2.07 lb) |
| Dimension | 292.2 × 127 × 110.7 mm (11.50 × 5.00 × 4.36 in) |
| Tripod Mounting | UNC ¼”-20 |
Dimension
