Description

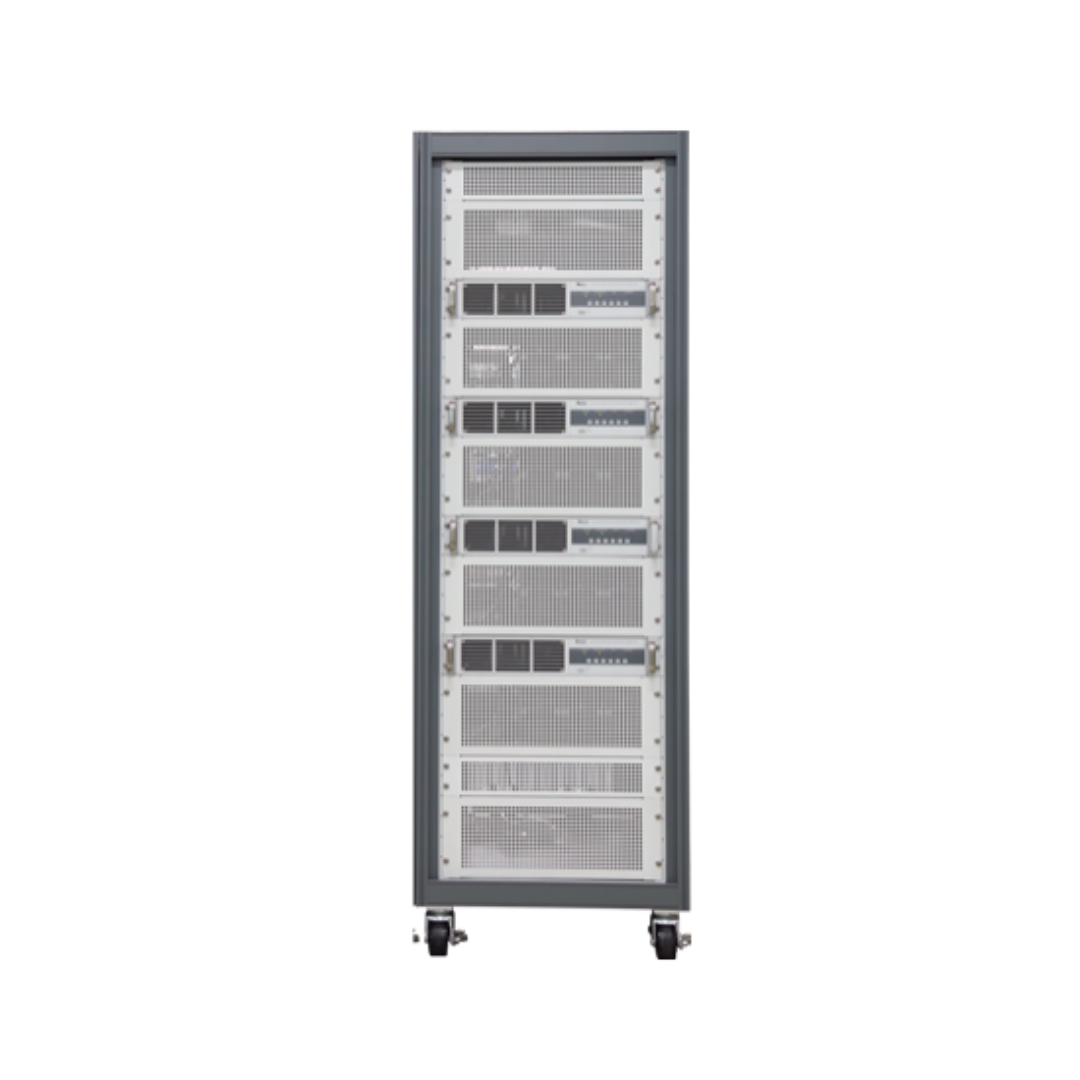

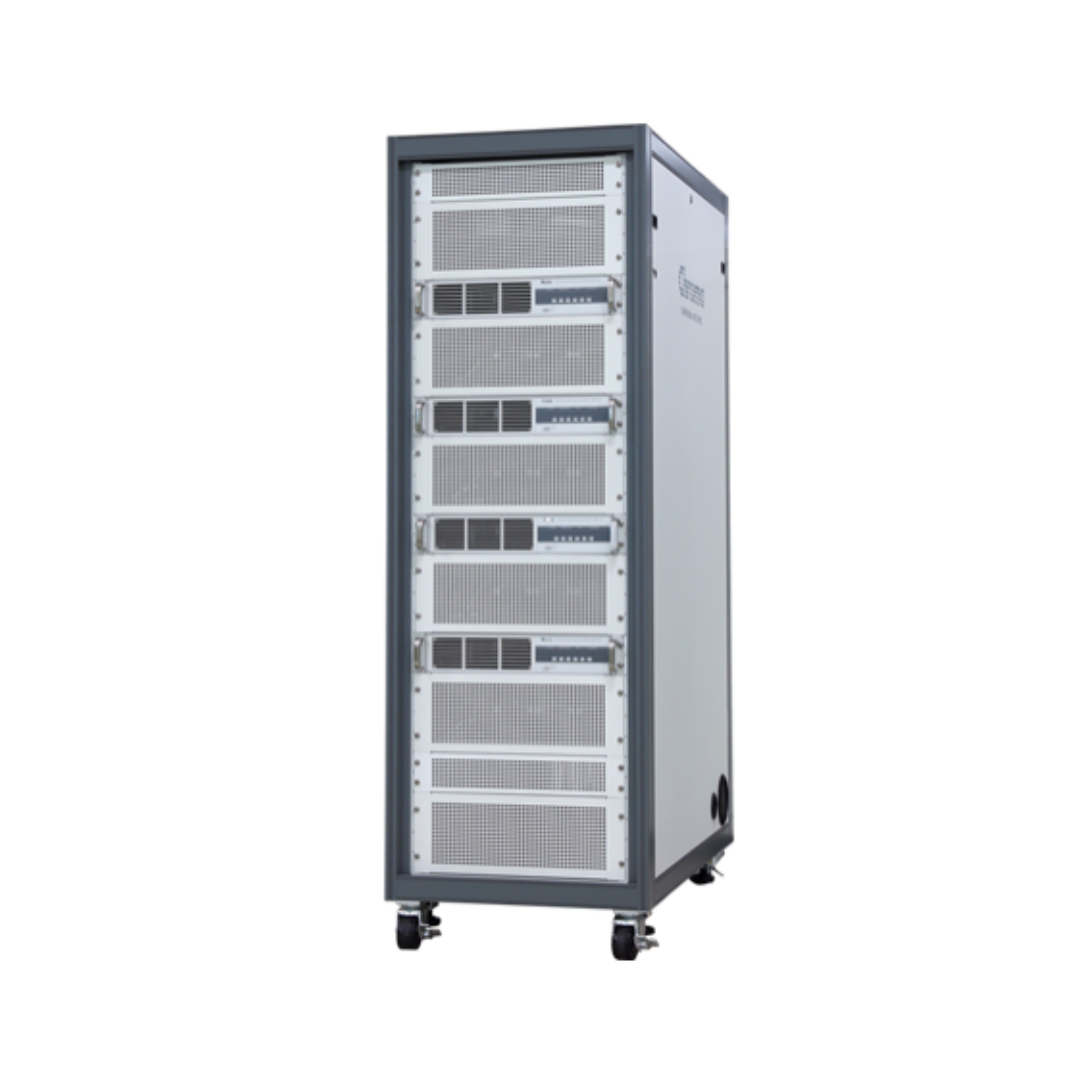

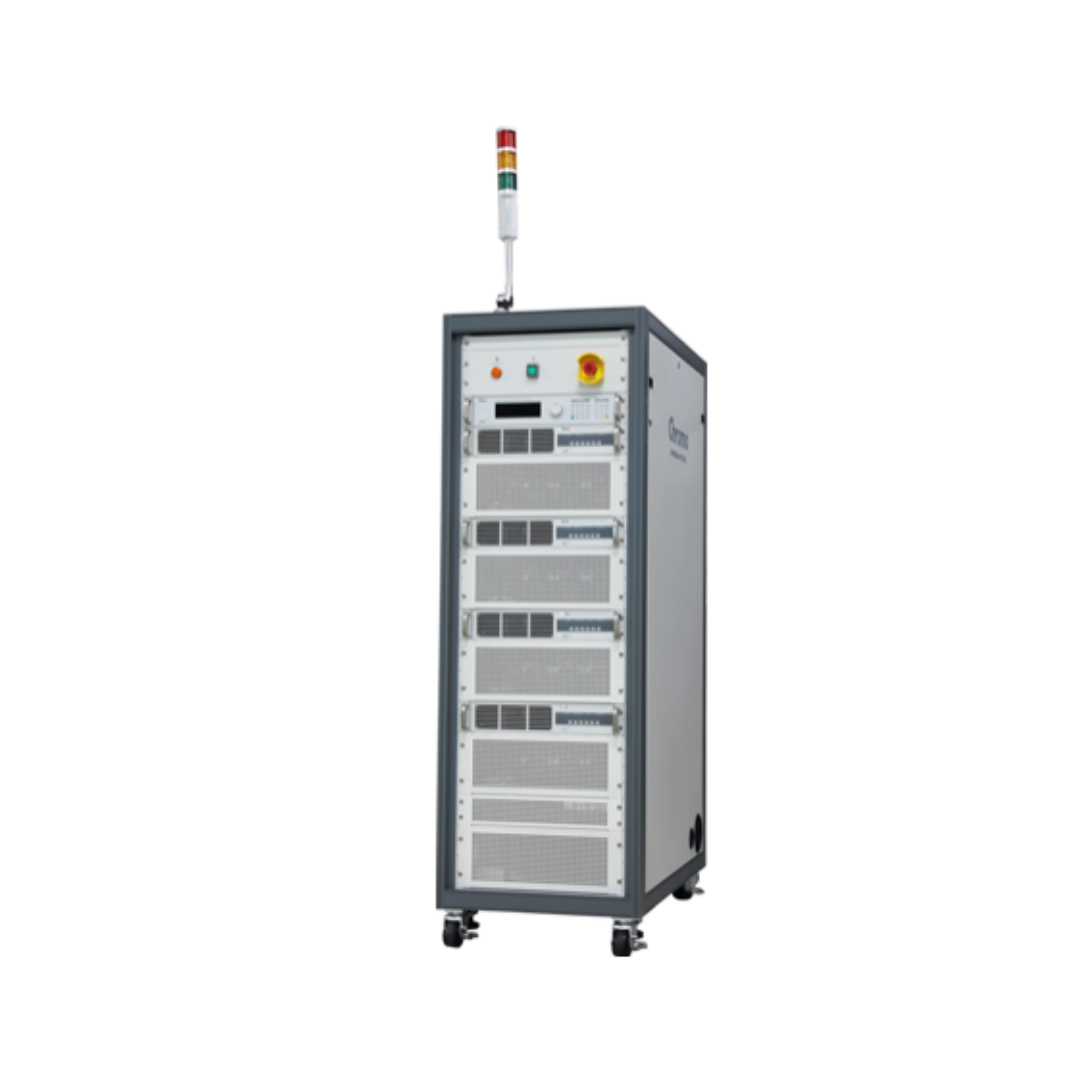

Regenerative Battery Pack Test System Model 17020E
Deskripsi
The Chroma 17020E is an advanced testing system engineered for precise and reliable battery module and pack assessments. It’s tailored to meet the stringent needs of battery production, qualification, and performance tests, offering key features like:
- High Precision & Safety: With accurate measurement capabilities and layered safety features, it ensures safe and repeatable tests. Protections include software communication safeguards, firmware over-voltage/current protection, and hardware safety circuits.
- Multi-channel Support: Equipped with 2 or 4 independent channels, the system allows simultaneous charge/discharge tests on multiple battery modules, maximizing utilization
- Advanced Programming: Integrated with Chroma’s “Battery Pro” software, it offers customizable test cycles, from basic to complex driving simulations. In case of power failure, data is securely stored in non-volatile memory, ensuring no loss and smooth recovery.
- Seamless Transition & Regenerative Energy: The system’s seamless charge-discharge transition simulates real-world EV battery usage. Its regenerative feature recycles energy during discharge, enhancing energy efficiency by returning it to charging tests or utility mains.
It’s a robust tool for high-demand battery testing environments, ensuring precision, safety, and energy savings.
Key Features
- Charge/discharge modes (CC, CV, CP)
- Power Range:
- 10kW/20kW per channel
- 30kW/40kW/50kW/60kW/70kW/80kW (Parallel)
- Current Range:
- 60V: 180A/360A；per channel；720A (Parallel)
- 100V/200V: 100A per channel
- 100V/200V: 200A/300A/400A/500A/600A/700A/800A (Parallel)
- Voltage Range: 60V/ 100V/ 200V
- Regenerative battery energy discharge, efficiency 85%
- Channels paralleled for higher currents
- Driving cycle simulation
- Fast current conversion without current interrupt
- High precision measurement
- Smooth current without over shoot
- Test data analysis function
- Data recovery protection (after power failure)
- Independent protection of multi-channel
APPLICATION
- EV battery module
- Electric scooter
- Electric bike
- UPS
- Energy storage battery
- Power tools
- Car battery
- Lead-acid battery
